JR drainCam

AHD Drilling | Deep Water Well | Chimney | Borehole and Downhole Camera


  • Pan/Tilt Camera with 180º/360º rotation for Chimney and Deep Wells, 30 à 200 meter soft cable. Price shown is for 100 meters.
  • Resists to hydrostatic pressure up to 10 Bars (100 meter deep). HD Image with 8” Color Screen Waterproof  and Shockproof Tablet.
  • Ideal for Drilling, Chimneys, Borehole, Downhole, Deep Water Wells or any type of Vertical Structure Inspection, cannot be used where explosive (Gas/Oil/Etc.) material is present.
  • On-Screen Digital Meter-Counter, DVR recording of video/photo/voice on USB Flash Bar.
  • AHD Camera offers no loss on image quality on long cable, giving Clear and Crisp HD Image with manual ZOOM function!
  • Special order only, not in stock. Please allow 2 to 3 weeks for delivery. Contact us 7/7 days, including nights and weekends!
  • Financing available through Lease-to-Own available at great low rates everywhere in Canada, contact us for more info!

5 in stock

SKU: V8-3288PTN-2 Category:


  • Drilling, Chimney and Deep Well/Borehole/Downhole Inspection Camera with 30 to 150 meter cable. Price is for 100 meter cable.
  • Approved and tested for depth up to 10 Bars (100 Meters), efficient for deep well inspection.
  • Suitable for: Chimney Inspection, Borehole Deep Water Well Inspection, Foundation Pile Inspection, any Vertical Type Inspection with no explosive material (gas/oil/etc.).

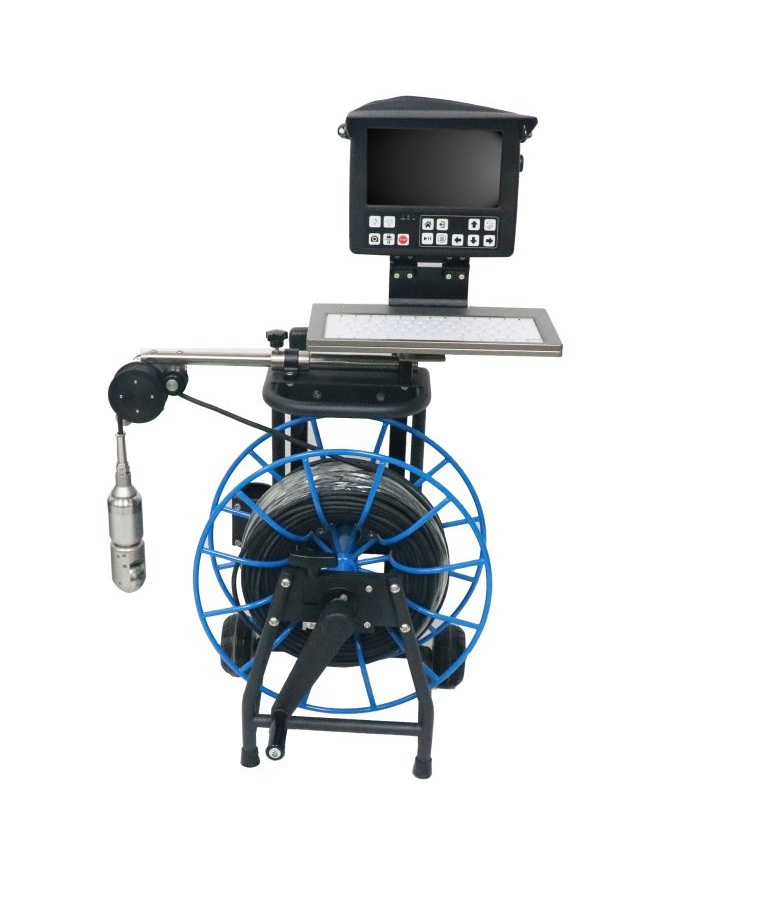

  • 1.360° rotation AHD Camera Head ,Pan 360° Tilt 180°. Skids/Crawlers to center camera in pipe included (as image).
    2.1/3 CMOS,1.3MP HD camera Lens, waterproof up to 10 bars with HAD resolution with ZOOM function, offers no loss of HD image quality on long cable.
    3.8 inch IPS LCD Waterproof and Shockproof screen,1280*720 resolution.
    4.DVR control box with audio,video recording and photography function.
    5.USB Bluetooth keyboard real time typewriting on video recordings.
    6.Built in 7000mA Li-ion battery, support unit working more than 5 hours.
    7.Digital meter counter function, error is less than 1%.
  • Item not in stock, on special order only. Contact us 7/7 days, including nights and weekends!
  • 1-Year Limited Warranty against manufacturer’s defects.

Additional information

Weight 55 lbs
Dimensions 30 × 17 × 24 in
